SIM / EN4165 Multi Modular Rectangular Connectors
Click here to access our online stock and quotation website.

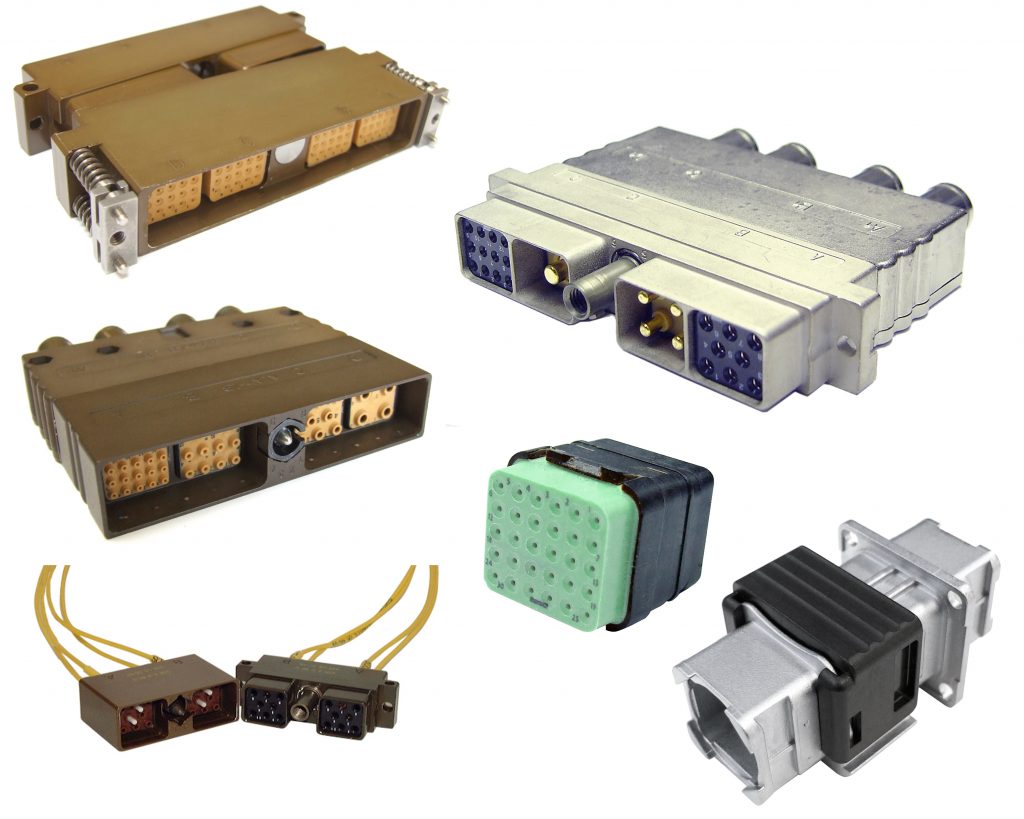

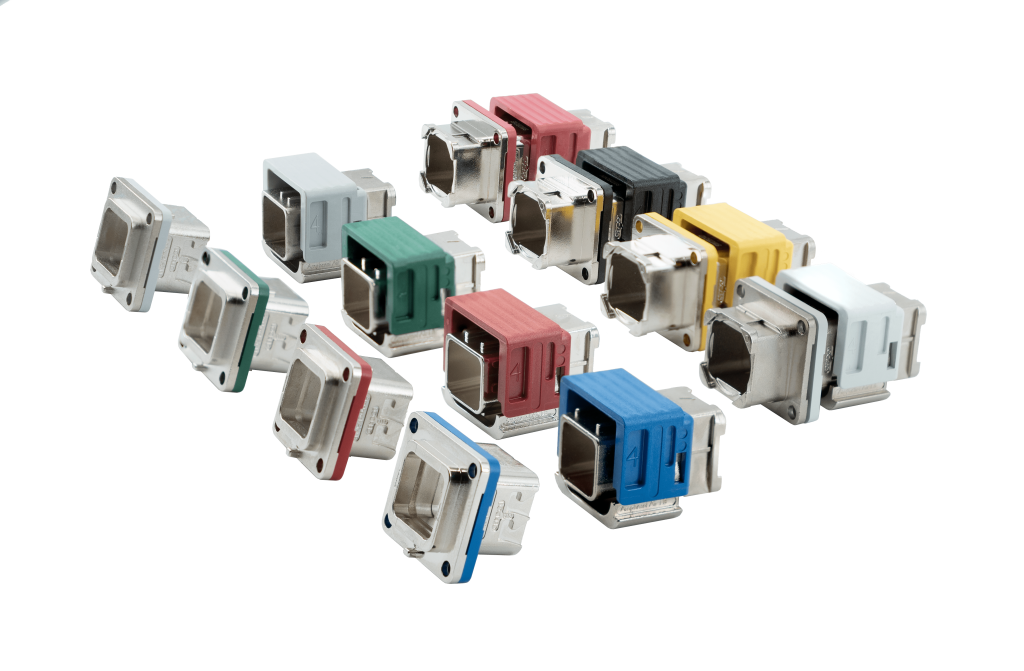

SIM Connector (EN4165) is a modular, multi-functional rectangular connector.
Ideal for harsh environments from commercial air to military land systems to industrial applications. Comprising of lightweight, compact shells and modules, which together create an integrated solution for advanced signal and power requirements – all with a reduced footprint.
- Fully qualified to EN4165 European military aerospace requirements
- Similar to MIL-DTL-38999 in performance but with the added benefit of a small footprint and versatility
- Ability to upgrade modules without changing out the entire connector
- Lightweight with high density of contact points
- High durability of 500 mating and unmating cycles
- Multiple keyway options to prevent connector mismating
- Monomodule fully qualified and meets ARINC809
- Highly flexible modular connector – high density to high power

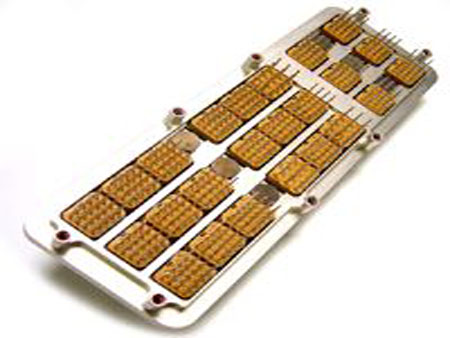

- Customised interface plates designed to fit your application
- Designed to allow mixing of male and female modules in each connector half
- Compact, space saving solution
- Operating temperature of -55 °C to +175 °C
- Modular, multi contact, multi functional rectangular connector
- Selection of connection modules from size 8 to 23 AWG
- 3 shell types for monomodule 2 and 4 modules

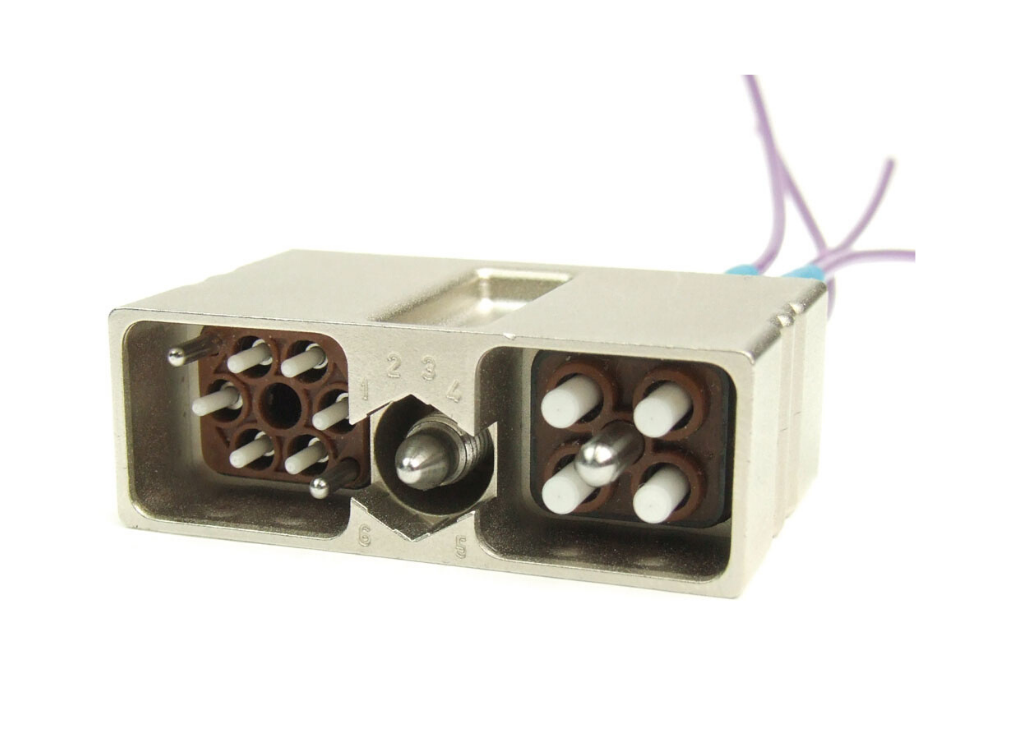

- Power, signal, fibre optic, triax, coax and ethernet connections in the same plug
- Metallic or composite shell material
- Available in nickel or cadmium plating
- Environmentally sealed option
Aviation
- Flight Controls
- Activation Systems
- Inflight Entertainment (IFE)
- Seat Controls
Defence
- Radar applications
- Quick release requirements
- Field equipment
Industrial
- Control boxes
- Servos
- Sensors
Features and Benefits
SIM Connector (EN4165) is a modular, multi-functional rectangular connector.
Ideal for harsh environments from commercial air to military land systems to industrial applications. Comprising of lightweight, compact shells and modules, which together create an integrated solution for advanced signal and power requirements – all with a reduced footprint.
- Fully qualified to EN4165 European military aerospace requirements
- Similar to MIL-DTL-38999 in performance but with the added benefit of a small footprint and versatility
- Ability to upgrade modules without changing out the entire connector
- Lightweight with high density of contact points
- High durability of 500 mating and unmating cycles
- Multiple keyway options to prevent connector mismating
- Monomodule fully qualified and meets ARINC809
- Highly flexible modular connector – high density to high power
- Customised interface plates designed to fit your application
- Designed to allow mixing of male and female modules in each connector half
- Compact, space saving solution
- Operating temperature of -55 °C to +175 °C
Range
- Modular, multi contact, multi functional rectangular connector
- Selection of connection modules from size 8 to 23 AWG
- 3 shell types for monomodule 2 and 4 modules
- Power, signal, fibre optic, triax, coax and ethernet connections in the same plug
- Metallic or composite shell material
- Available in nickel or cadmium plating
- Environmentally sealed option
Applications
Aviation
- Flight Controls
- Activation Systems
- Inflight Entertainment (IFE)
- Seat Controls
Defence
- Radar applications
- Quick release requirements
- Field equipment
Industrial
- Control boxes
- Servos
- Sensors
