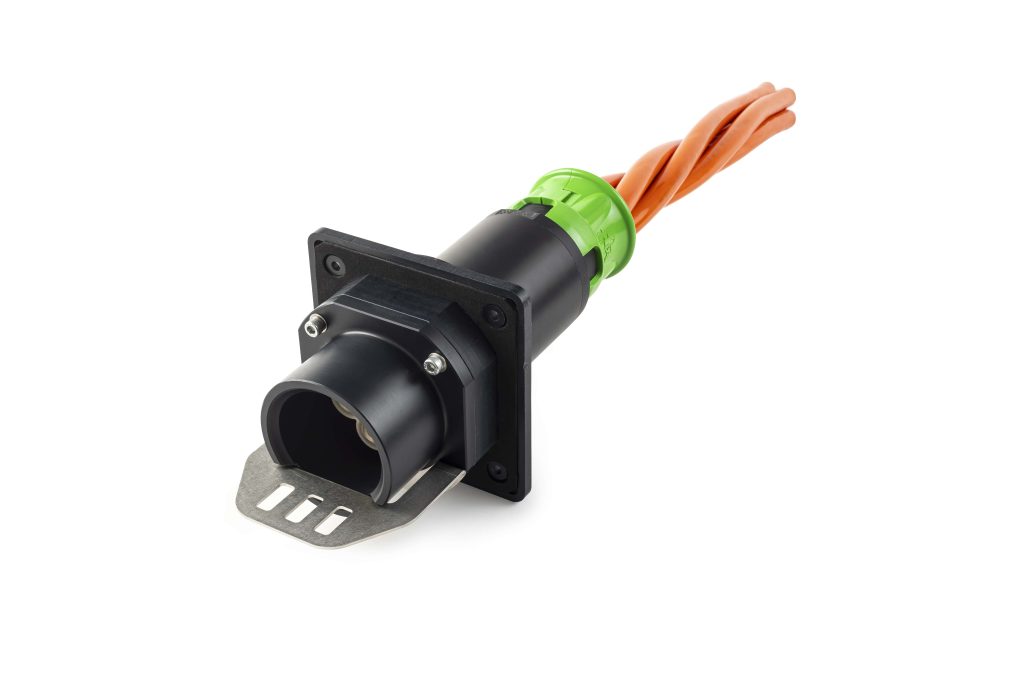

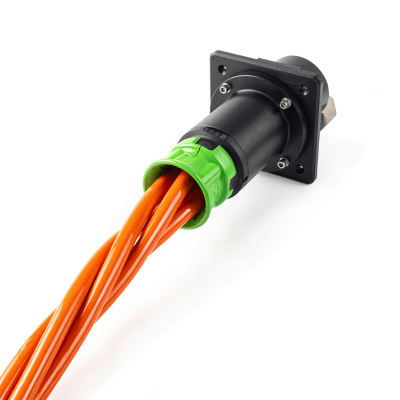

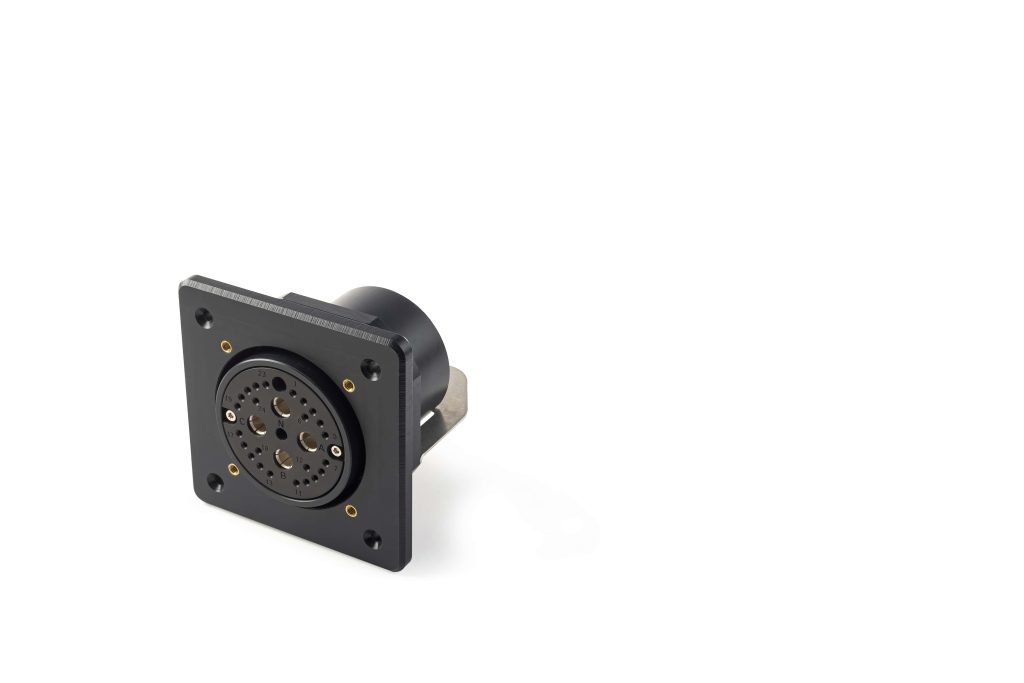

PPM400 Panel Mount Connector (400 Hz)

• High conductivity copper contacts. Power silver plated and Controls gold plated
• Connector sealed to IP66/IP67 when engaged (filler not required)
• Suitable for a wide range of composite and single core cables
• External components manufactured from impact resistant thermally stable polymers
• Exterior handle/strain relief system
• Provided with A, B, C & N power contacts and up to 24 control contacts
• Optional cover & socket protection cap
• Polarity can be reversed using control control for first break last mate to ensure safety

• Nominal voltage: 1115/200 V, 400 Hz
• Current carrying capacity: 450 A (power), 35 A (control)
• Current overload: 1500 A for 1 minute (power)
• High voltage test: 4000 V
• Operating temperature: – -25°C to +90°C (includes temperature rise)
• Mating forces: As per BS 4G 173
• Applicable standards: ISO 461-1
  and BS 4G 173
• Overall weight: 2.5kg

The PPM Panel Mount provides a connectorised solution for cable exiting enclosures.
