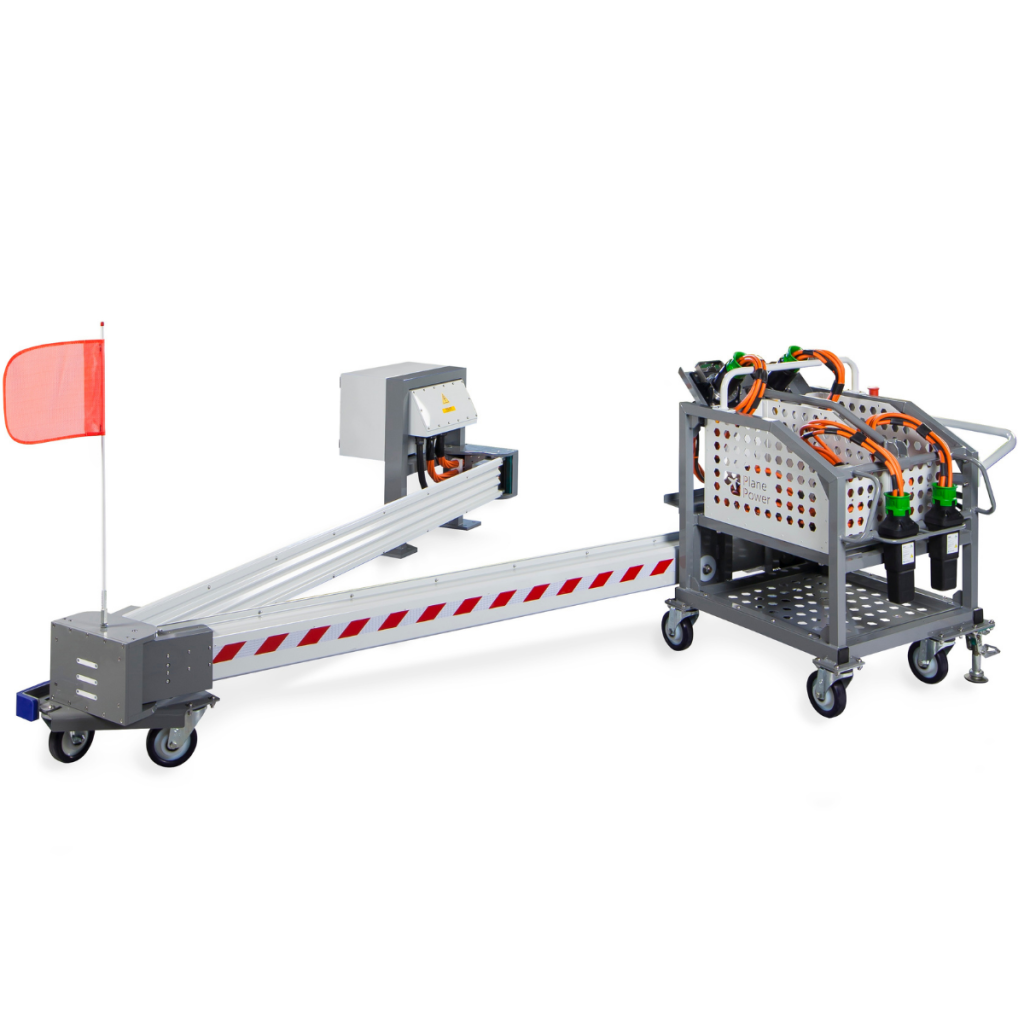

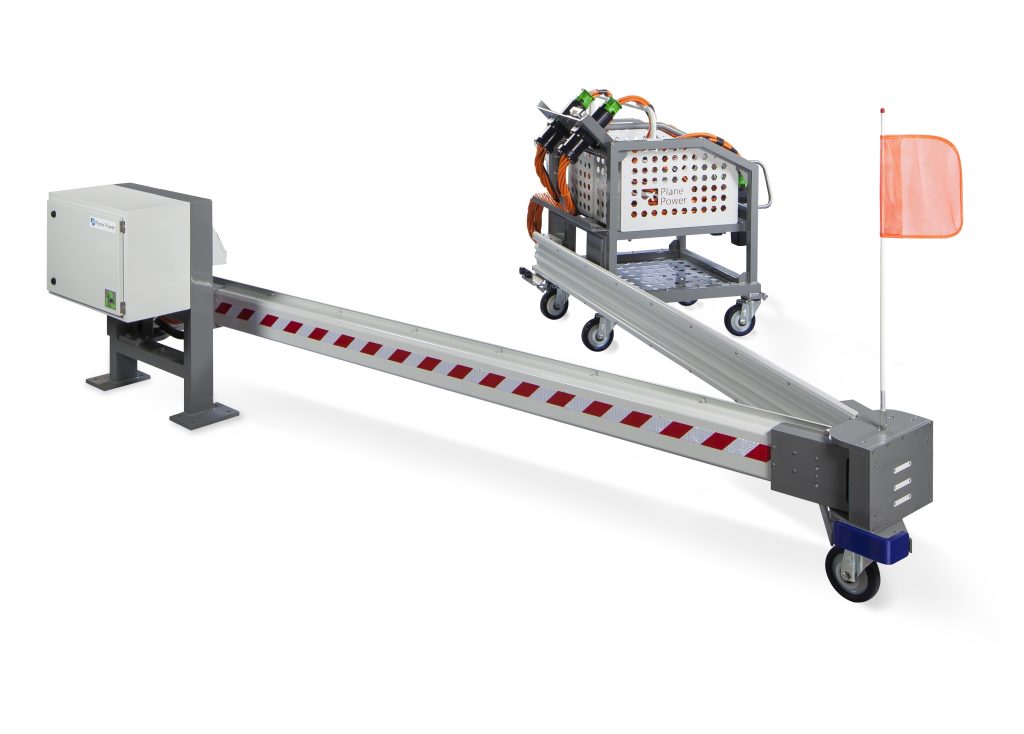

Plane Power Crocodile Cable Carrier
The Plane Power Crocodile Cable Carrier is the quickest method of transferring power from a GPU to the aircraft.
- Light weight, reduces operator effort

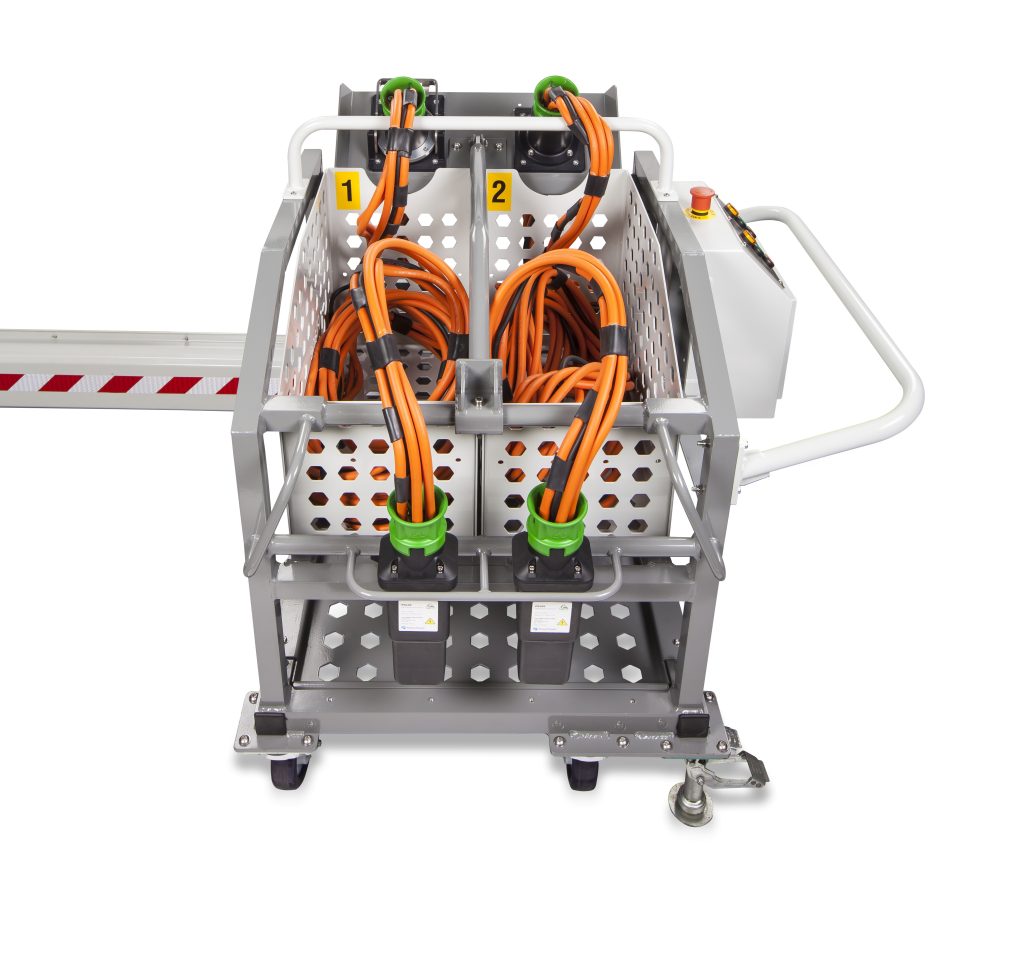

- Unique in-basket harness release system, allows rapid change of replacement harnesses
- Easy basket replacement
- Compact stowed footprint
- Accommodates uneven surfaces
The Plane Power cable carrier has a unique articulating pivot joint integrated at intermediate joints and fixed end. This allows the carrier arms to move freely in response to uneven surfaces. It also removes component stresses and reduces maintenance requirements.
Technical specification:
- Deployment lengths: 6m, 12m, 18m, 24m and 30m
- Outputs: 400 Hz, single and double options (28VDC can also be supplied)
- Aluminium alloy construction
- Knuckle articulation: Unique articulating knuckle design accommodates uneven surfaces (6 degrees of articulation)

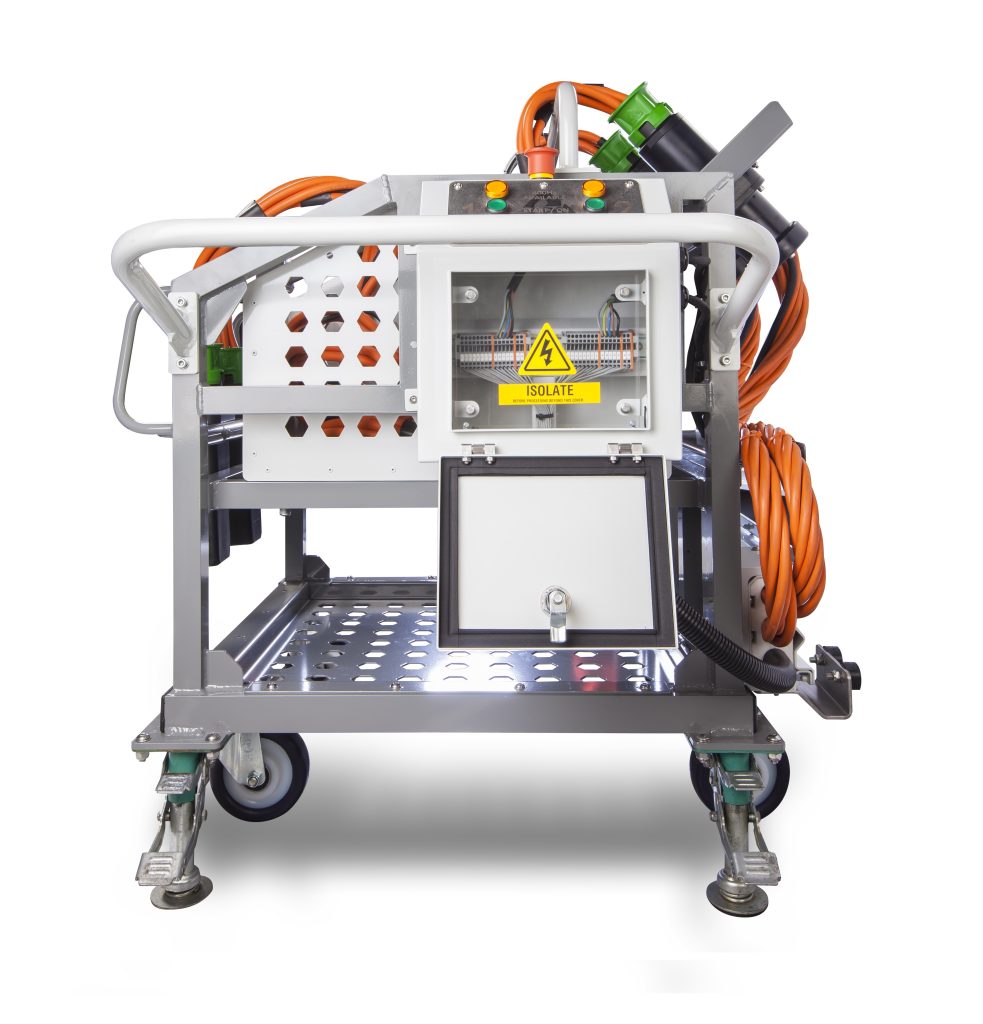

- Basket controls: 400 Hz available LED indicator; LED illuminated start/on push button; stop push buttons
- Protection of 400 Hz or 28VDC power supply cables to aircraft
Features and Benefits
- Light weight, reduces operator effort
- Unique in-basket harness release system, allows rapid change of replacement harnesses
- Easy basket replacement
- Compact stowed footprint
- Accommodates uneven surfaces
The Plane Power cable carrier has a unique articulating pivot joint integrated at intermediate joints and fixed end. This allows the carrier arms to move freely in response to uneven surfaces. It also removes component stresses and reduces maintenance requirements.
Range
Technical specification:
- Deployment lengths: 6m, 12m, 18m, 24m and 30m
- Outputs: 400 Hz, single and double options (28VDC can also be supplied)
- Aluminium alloy construction
- Knuckle articulation: Unique articulating knuckle design accommodates uneven surfaces (6 degrees of articulation)
- Basket controls: 400 Hz available LED indicator; LED illuminated start/on push button; stop push buttons
Applications
- Protection of 400 Hz or 28VDC power supply cables to aircraft
