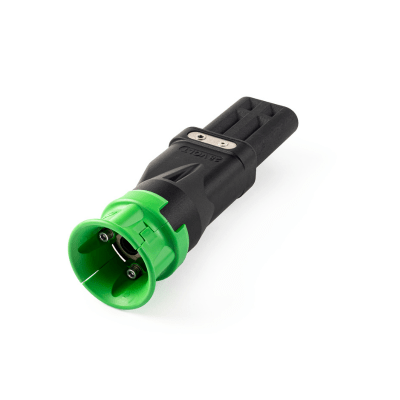

P28 28VDC Connector

P28 28VDC Connector

LPA Plane Power 28VDC socket to connect ground power supply to aircraft.

  • Easy connection to cable
  • Low maintenance
  • Impact resistant
  • Replaceable handle/strain relief system
  • Suitable for a wide range of composite and single core 28VDC cables
  • IP66 & IP67 rated

The external components of the connector are manufactured from impact resistant, thermally stable and chemically resistant thermoplastics

  • 28 VoltDC 3 pole
  • Composite
  • Rated for 450 amps max continuous current and 1500 Amps for 1 minute
  • 35 amps continuous current
  • Performance and dimensions to ISO 461-1/2 and BS 45 173
  • Compatibility: Mates with ISO 461-2
  • Connection of 28VDC ground power supply to aircraft

Features and Benefits

  • Easy connection to cable
  • Low maintenance
  • Impact resistant
  • Replaceable handle/strain relief system
  • Suitable for a wide range of composite and single core 28VDC cables
  • IP66 & IP67 rated

The external components of the connector are manufactured from impact resistant, thermally stable and chemically resistant thermoplastics

Range

  • 28 VoltDC 3 pole
  • Composite
  • Rated for 450 amps max continuous current and 1500 Amps for 1 minute
  • 35 amps continuous current
  • Performance and dimensions to ISO 461-1/2 and BS 45 173
  • Compatibility: Mates with ISO 461-2

Applications

  • Connection of 28VDC ground power supply to aircraft

LPA Connection Systems is a leading electro-mechanical engineering company, based in the UK. With over 100 years of engineering experience and expertise, LPA provides an extensive range of electrical connector products and connection systems.

Light & Power House
Shire Hill
Saffron Walden
Essex
CB11 3AQ

Documentation

LPA P28 datasheet
