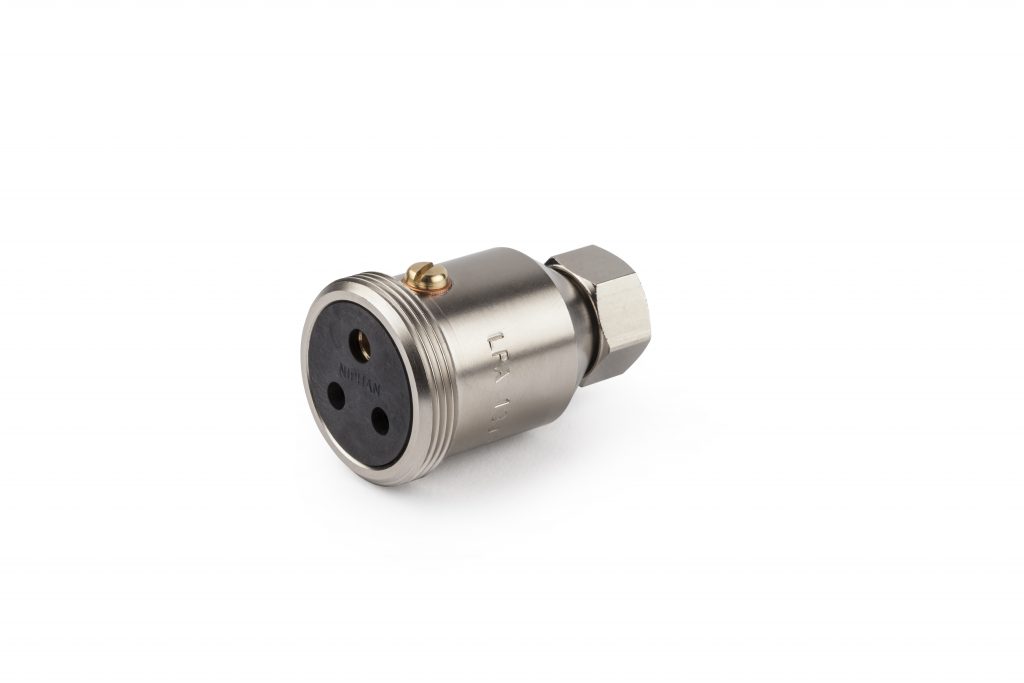

Niphan Trailing Socket
LPA fire resistant and standard Niphan connectors are designed for use in underground rail tunnels and standard tunnel applications.
- Simple installation
- Corrosion resistant
- High shock resistant
- Brass housing with nickel electroless plating
- IP66 rated
- Operating temperatures of -20 to +85 C
- Low smoke and toxicity
- Halogen and Cadmium free
- 50 Volt – 500 Volt
- 5 Amp – 100 Amp
- 2 Pin – 12 Pin
- Compression gland or saddle clamp
- Modifications available
- Hostile environments with fire, chemical, or similar risk
- Rail, marine, military, aircraft, industrial
- Ports, airports, roads, tunnels
- Heavy duty industrial
- Lighting, ventilation etc
Features and Benefits
LPA fire resistant and standard Niphan connectors are designed for use in underground rail tunnels and standard tunnel applications.
- Simple installation
- Corrosion resistant
- High shock resistant
- Brass housing with nickel electroless plating
- IP66 rated
- Operating temperatures of -20 to +85 C
- Low smoke and toxicity
- Halogen and Cadmium free
Range
- 50 Volt – 500 Volt
- 5 Amp – 100 Amp
- 2 Pin – 12 Pin
- Compression gland or saddle clamp
- Modifications available
Applications
- Hostile environments with fire, chemical, or similar risk
- Rail, marine, military, aircraft, industrial
- Ports, airports, roads, tunnels
- Heavy duty industrial
- Lighting, ventilation etc
LPA Connection Systems is a leading electro-mechanical engineering company, based in the UK. With over 100 years of engineering experience and expertise, LPA provides an extensive range of electrical connector products and connection systems.
